PRODUCT DATA
Technical values below are read from this product's Shopify description and standard product fields. Confirm final operating limits and integration requirements with Voltaplex before specifying the pack for a system.
| Series / parallel configuration | 4S4P (16 cells total) |
|---|---|
| Cell manufacturer / model | Sanyo NCR18650GA |
| Nominal voltage | 14.4V |
| Rated capacity | 13Ah |
| Calculated nominal energy | 187 Wh (nominal voltage × stated capacity) |
| Maximum continuous discharge | 40A |
| Pack shape / form factor | Cuboid, Customized Layouts |
ENGINEERING CONTEXT
Using the listed nominal voltage of 14.4V and capacity of 13Ah, the calculated nominal energy is 187 watt-hours (Wh). This is a calculation from the published nominal values, not a measured runtime or usable-energy guarantee.
PRODUCT INFORMATION

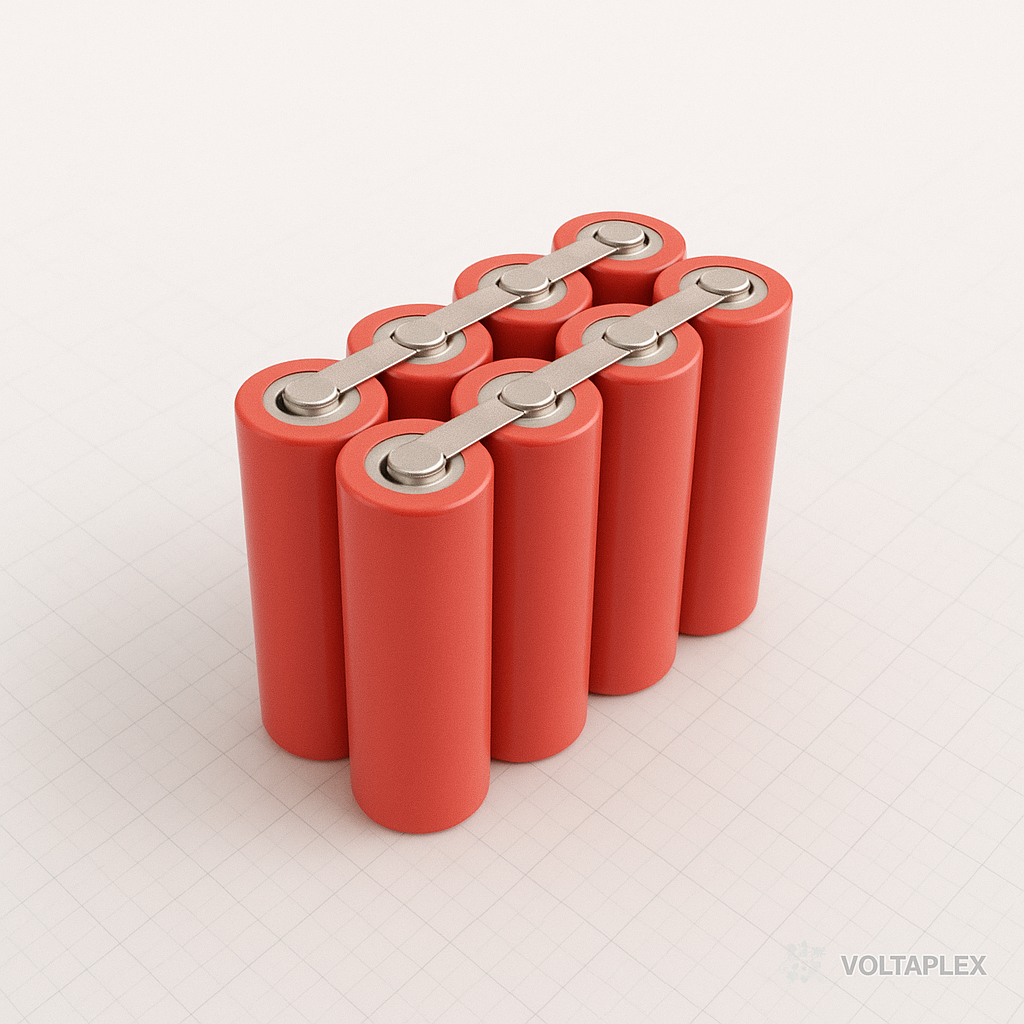

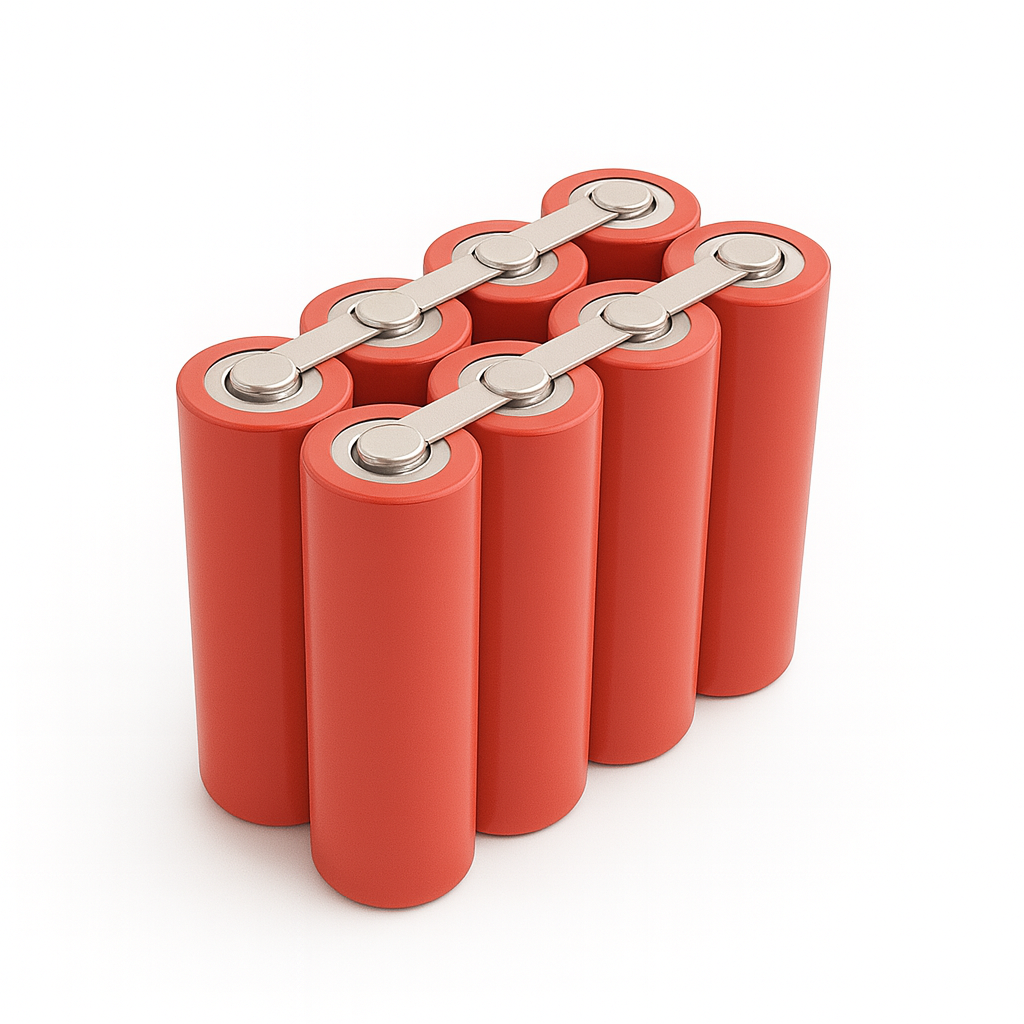

This 4S4P Li-ion battery pack is built with high-performance Sanyo NCR18650GA cells. It’s an ideal solution for compact 14.4V applications that require high energy density, dependable performance, and extended runtime under moderate discharge demands.
The pack features a cuboid shape and is suitable for integration into a wide range of custom projects, including handheld instruments, portable medical devices, communication systems, and compact solar storage solutions.
It comes equipped with a Battery Management System (BMS) that includes all essential protection functions such as over-current protection, over-discharge protection, over-charge protection, and short-circuit protection—ensuring safe and reliable operation.
As with all Voltaplex packs, this product can be customized to meet your application's exact requirements, including BMS functions, connectors, enclosures, and certifications like UN38.3 or IEC62133.
Key Features:
Configuration: 4S4P (16 cells total)
Cell Type: Sanyo NCR18650GA
Nominal Voltage: 14.4V
Capacity: 13Ah
Max Continuous Discharge: 40A
Shape: Cuboid, Customized Layouts
Customizable: Yes (connectors, BMS, enclosure, etc.)
CUSTOM CONFIGURATION
The product information identifies customization as an option. Send Voltaplex your application, operating voltage, capacity target, current requirements, enclosure constraints, connector needs and any relevant compliance requirements for an engineering review.
PRODUCT QUESTIONS
Review the product specification table and description on this page. The listed configuration is 4S4P (16 cells total). The listed nominal voltage is 14.4V. The listed capacity is 13Ah. Contact Voltaplex to confirm any specification that is not stated in the product listing.
Use the Request a Quote button on this page. The inquiry link includes this product's name and page address so the sales team can identify the battery pack you are asking about. Add your target quantity, application and any project requirements to help the team review your request.
The product description identifies customization as an option. Submit your operating requirements and Voltaplex can review the requested configuration, subject to engineering feasibility and component availability.
Include the intended application, required voltage and capacity, continuous and peak current, available enclosure space, operating environment, target quantity, connector requirements and any certification or documentation needs. Share a drawing or reference design when available.
