280Ah LiFePo4 Battery for 12V Lead-Acid Battery Replacement

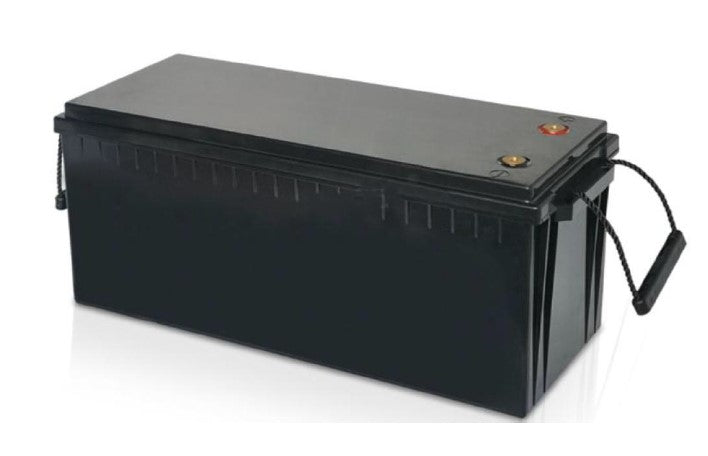

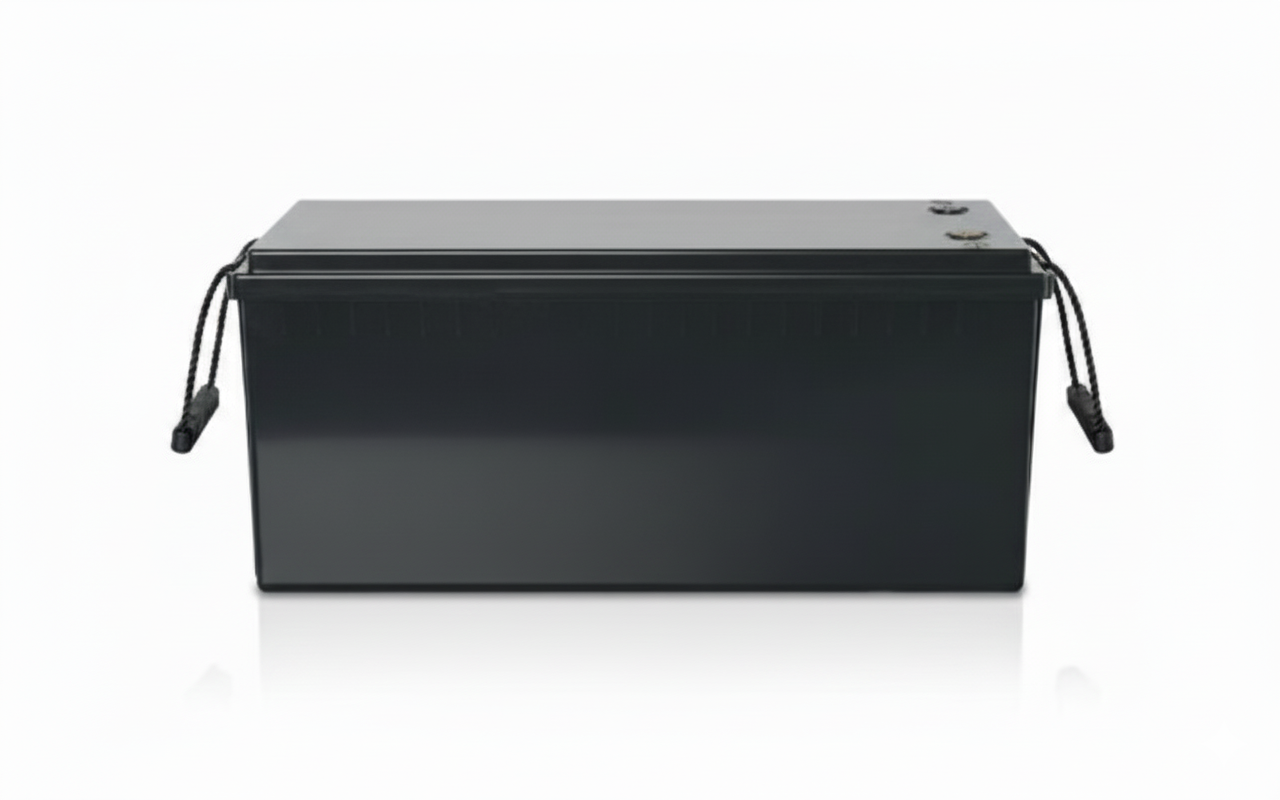

The Voltaplex Lead-Acid Replacement VPMB-12200 is a high-capacity, 12.8V 200Ah LiFePO4 (Lithium Iron Phosphate) battery pack engineered to serve as a drop-in replacement for traditional 12V lead-acid batteries. Designed with durability, safety, and performance in mind, this battery is ideal for a wide range of applications including solar...
Nominal voltage12V
Capacity280AH
Continuous discharge100A
Request a Quote

Tell us about your application and requirements. Our team can help review the right configuration.

Browse all battery packs

PRODUCT DATA

Technical specifications: 280Ah LiFePo4 Battery for 12V Lead-Acid Battery Replacement

Technical values below are read from this product's Shopify description and standard product fields. Confirm final operating limits and integration requirements with Voltaplex before specifying the pack for a system.

Nominal voltage12V
Rated capacity280AH
Calculated nominal energy3360 Wh (nominal voltage × stated capacity)
Maximum continuous discharge100A
Peak discharge300A < 1s
WeightApprox. 27 kg

ENGINEERING CONTEXT

Understanding the 280Ah LiFePo4 Battery for 12V Lead-Acid Battery Replacement configuration

Calculated nominal energy

Using the listed nominal voltage of 12V and capacity of 280AH, the calculated nominal energy is 3360 watt-hours (Wh). This is a calculation from the published nominal values, not a measured runtime or usable-energy guarantee.

PRODUCT INFORMATION

Product overview — 280Ah LiFePo4 Battery for 12V Lead-Acid Battery Replacement

The Voltaplex Lead-Acid Replacement VPMB-12200 is a high-capacity, 12.8V 200Ah LiFePO4 (Lithium Iron Phosphate) battery pack engineered to serve as a drop-in replacement for traditional 12V lead-acid batteries. Designed with durability, safety, and performance in mind, this battery is ideal for a wide range of applications including solar energy storage, telecom backup, RV and marine systems, industrial equipment, and mobility solutions.

Electrical Specifications:

  • Charging Voltage: 14.6V

  • Cut-off Voltage: 8.8V

  • Standard Charge Current: 0.2C (Approx. 6.0h charge time)

  • Max Continuous Charge Current: 100A (Approx. 3.0h charge time)

  • Standard Discharge Current: 0.5C

  • Max Continuous Discharge Current: 100A

  • Peak Discharge Current: 300A < 1s

  • Internal Resistance: ≤50mΩ @ 50% SOC

Mechanical Dimensions:

  • Length: 522 ±3 mm

  • Width: 240 ±3 mm

  • Height: 218 ±3 mm

  • Weight: Approx. 27 kg

Applications:

  • Solar & Off-grid Energy Systems

  • UPS & Backup Power

  • Recreational Vehicles (RVs)

  • Marine & Boat Power

  • Mobility Equipment

  • Industrial Power Supply


Why Choose Voltaplex Lead-Acid Replacement Battery?

  • Lightweight & Compact: Up to 70% lighter than comparable lead-acid solutions

  • Maintenance-Free: No need for water refilling or equalization

  • Smart Protection: Built-in BMS with multi-layer safety

  • Fast Charging: Reduced downtime with high charge acceptance

  • Long Life: Up to 10 years of usable service depending on use case




PRODUCT QUESTIONS

Frequently asked questions about 280Ah LiFePo4 Battery for 12V Lead-Acid Battery Replacement

What are the specifications of 280Ah LiFePo4 Battery for 12V Lead-Acid Battery Replacement?

Review the product specification table and description on this page. The listed nominal voltage is 12V. The listed capacity is 280AH. Contact Voltaplex to confirm any specification that is not stated in the product listing.

How can I request a quote for this battery pack?

Use the Request a Quote button on this page. The inquiry link includes this product's name and page address so the sales team can identify the battery pack you are asking about. Add your target quantity, application and any project requirements to help the team review your request.

Can 280Ah LiFePo4 Battery for 12V Lead-Acid Battery Replacement be adapted for my application?

Contact Voltaplex with your application details to ask whether this product can be adapted. Changes to electrical configuration, enclosure, connectors or battery management requirements need an engineering review before they can be confirmed.

What information should I include with my battery pack inquiry?

Include the intended application, required voltage and capacity, continuous and peak current, available enclosure space, operating environment, target quantity, connector requirements and any certification or documentation needs. Share a drawing or reference design when available.
